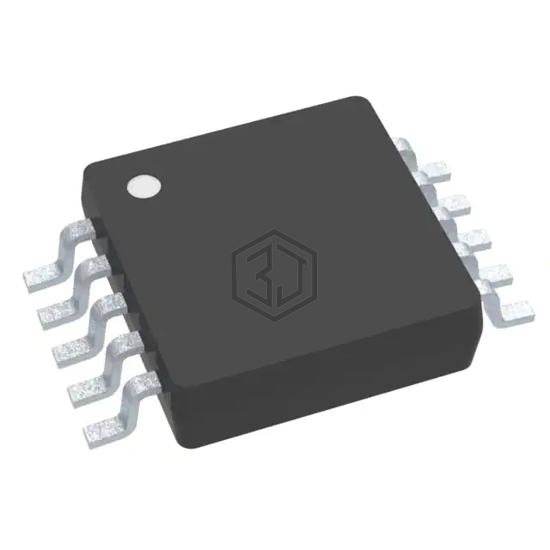

IC REG CTRLR BOOST/SEPIC 10VSSOP
LM5022QDGSTQ1 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BOOST/SEPIC 10VSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 6V ~ 60V, package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width).
In Stock: 8,323
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 6V ~ 60V |
| Frequency - Switching | 200kHz ~ 2.24MHz |
| Duty Cycle (Max) | 95% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5022MMX/NOPB | Texas Instruments | IC REG CTRLR BOOST/SEPIC 10MSOP | 100% | View |
| LM5022MME/NOPB | Texas Instruments | IC REG CTRLR BOOST/SEPIC 10MSOP | 100% | View |
| LM5022MM/NOPB | Texas Instruments | IC REG CTRLR BOOST/SEPIC 10MSOP | 100% | View |
| LM5022QDGSRQ1 | Texas Instruments | IC REG CTRLR BOOST/SEPIC 10VSSOP | 100% | View |
| MAX16990AUBB/V+T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BOOST/SEPIC 10UMAX | 93% | View |
| MAX16990ATCD/V+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BOOST/SEPIC 12TQFN | 93% | View |
Submit your RFQ for LM5022QDGSTQ1 and get a quote within 24 hours.
