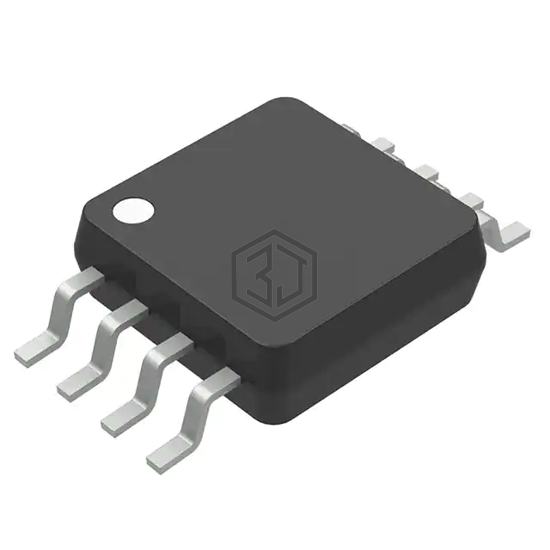

IC GATE DRVR HI/LOW SIDE 8MSOP
MCP14A0305T-E/MS is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR HI/LOW SIDE 8MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 18V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width).
In Stock: 1,342
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 12ns, 12ns |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP14A0303T-E/SN | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8SOIC | 100% | View |
| LM5111-3M | National Semiconductor | BUFFER/INVERTER BASED PERIPHERAL | 95% | View |
| TC4425EMF713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 92% | View |
| TC4423VOE713 | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 92% | View |
| TC4425EOE713 | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 92% | View |
| UCC27201ADRCT | Texas Instruments | IC GATE DRVR HALF-BRIDGE 9VSON | 88% | View |
Submit your RFQ for MCP14A0305T-E/MS and get a quote within 24 hours.
