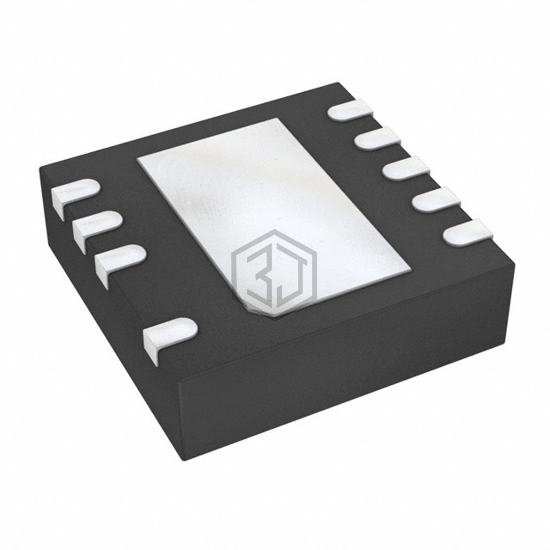

IC GATE DRVR HALF-BRIDGE 9VSON
UCC27201ADRCT is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 9VSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 140°C (TJ), voltage - supply 8V ~ 17V, package / case 10-VFDFN Exposed Pad, 9 Leads.
In Stock: 5,110
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 17V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 120 V |
| Rise / Fall Time (Typ) | 8ns, 7ns |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad, 9 Leads |
| Supplier Device Package | 9-VSON (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCC27201DRMT | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8VSON | 100% | View |
| UCC27200ADR | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8SOIC | 86% | View |
| TC4425EMF713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 80% | View |
| TC4424EMF713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 80% | View |
| TC4423VOE713 | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 80% | View |
| TC4425EOE713 | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 80% | View |
Submit your RFQ for UCC27201ADRCT and get a quote within 24 hours.
