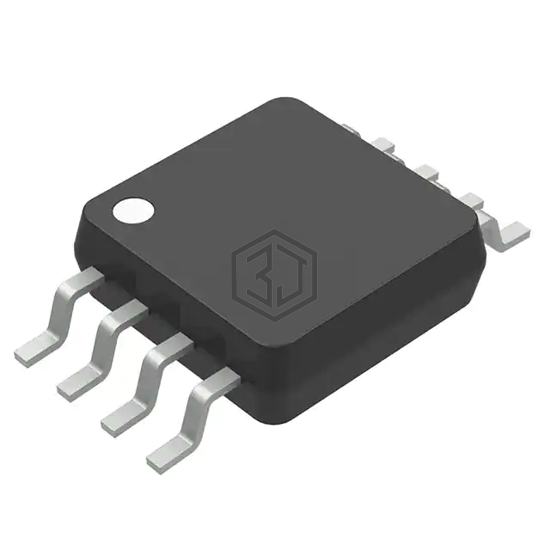

IC GATE DRVR HI/LOW SIDE 8MSOP
MCP14A0301T-E/MS is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR HI/LOW SIDE 8MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 18V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width).
In Stock: 2,460
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 13ns, 12ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5112SD/NOPB | Texas Instruments | IC GATE DRVR LOW-SIDE 6WSON | 96% | View |
| LM5112MYX | Texas Instruments | IC GATE DRVR LOW-SIDE 8MSOP | 96% | View |
| TC1413EUA | Microchip Technology | IC GATE DRVR LOW-SIDE 8MSOP | 95% | View |
| TC1413NEUA | Microchip Technology | IC GATE DRVR LOW-SIDE 8MSOP | 95% | View |
| TC1413NEOA | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 95% | View |
| UCC57108BDR | Texas Instruments | LOW-SIDE 3A/3A DRIVER WITH DESAT | 77% | View |
Submit your RFQ for MCP14A0301T-E/MS and get a quote within 24 hours.
