IC GATE DRVR LOW-SIDE 6WSON

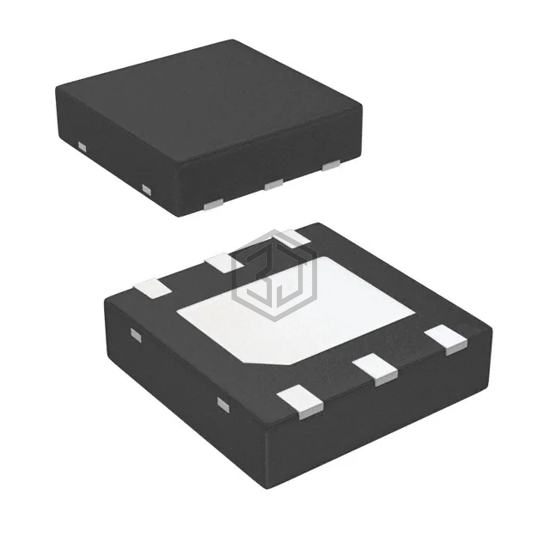

LM5112SD/NOPB is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR LOW-SIDE 6WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 3.5V ~ 14V, package / case 6-WDFN Exposed Pad.
In Stock: 3,436
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 3.5V ~ 14V |
| Logic Voltage - VIL, VIH | 0.8V, 2.3V |
| Current - Peak Output (Source, Sink) | 3A, 7A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 14ns, 12ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SM74101SDX/NOPB | Texas Instruments | IC GATE DRVR LOW-SIDE 6WSON | 100% | View |
| FL3100TSX | onsemi | IC GATE DRVR LOW-SIDE SOT23-5 | 96% | View |
| FAN3100TSX | onsemi | IC GATE DRVR LOW-SIDE SOT23-5 | 96% | View |
| TC1413NEOA713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 92% | View |
| TC1413EUA | Microchip Technology | IC GATE DRVR LOW-SIDE 8MSOP | 92% | View |
| TC1413NEOA | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 92% | View |
Submit your RFQ for LM5112SD/NOPB and get a quote within 24 hours.
