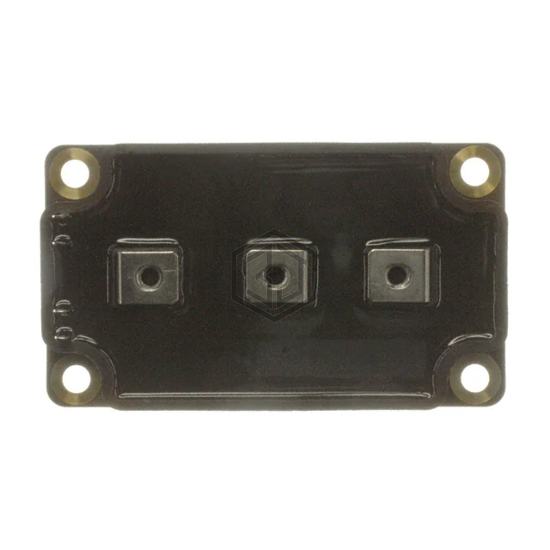

MOSFET 2N-CH 200V 372A SP6
APTM20AM04FG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 2N-CH 200V 372A SP6. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP6, power - max 1250W.
In Stock: 48
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Half Bridge) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 200V |
| Current - Continuous Drain (Id) @ 25°C | 372A |
| Rds On (Max) @ Id, Vgs | 5mOhm @ 186A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 10mA |
| Gate Charge (Qg) (Max) @ Vgs | 560nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 28900pF @ 25V |
| Power - Max | 1250W |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SP6 |
| Supplier Device Package | SP6 |
Submit your RFQ for APTM20AM04FG and get a quote within 24 hours.
