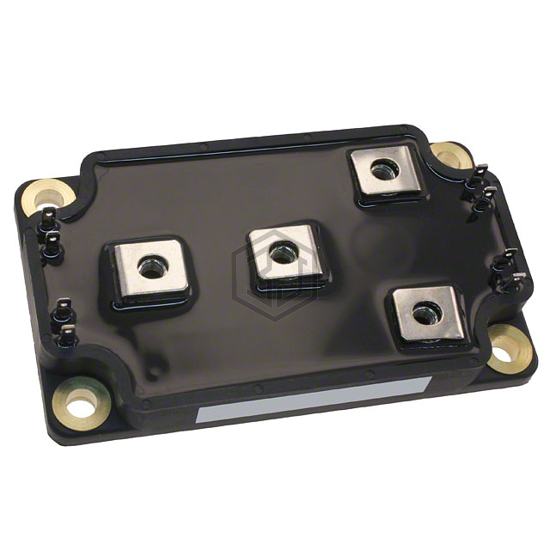

MOSFET 4N-CH 100V 278A SP6
APTM10HM05FG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 4N-CH 100V 278A SP6. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP6, power - max 780W.
In Stock: 8,212
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 4 N-Channel (Half Bridge) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 278A |
| Rds On (Max) @ Id, Vgs | 5mOhm @ 125A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 5mA |
| Gate Charge (Qg) (Max) @ Vgs | 700nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 20000pF @ 25V |
| Power - Max | 780W |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SP6 |
| Supplier Device Package | SP6 |
Submit your RFQ for APTM10HM05FG and get a quote within 24 hours.
