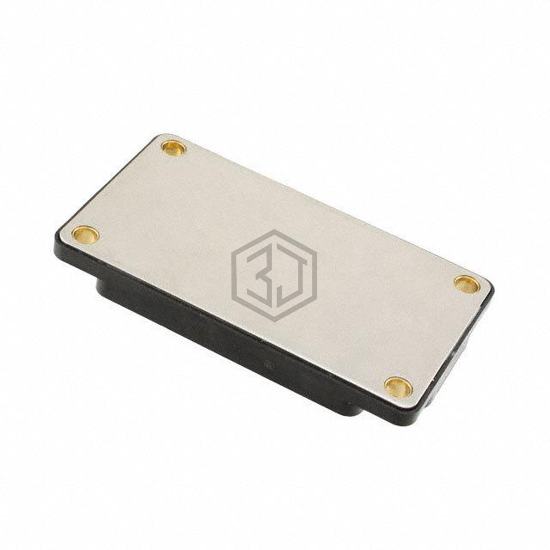

MOSFET 6N-CH 75V 120A SP6-P
APTM08TAM04PG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 6N-CH 75V 120A SP6-P. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP6, power - max 138W.
In Stock: 5,580
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 6 N-Channel (3-Phase Bridge) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 75V |
| Current - Continuous Drain (Id) @ 25°C | 120A |
| Rds On (Max) @ Id, Vgs | 4.5mOhm @ 60A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 153nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 4530pF @ 25V |
| Power - Max | 138W |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SP6 |
| Supplier Device Package | SP6-P |
Submit your RFQ for APTM08TAM04PG and get a quote within 24 hours.
