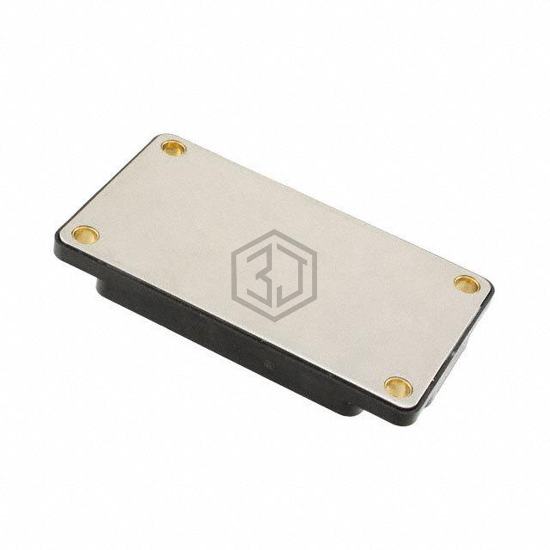

MOSFET 6N-CH 600V 72A SP6-P
APTC60TAM35PG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 6N-CH 600V 72A SP6-P. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP6, power - max 416W.
In Stock: 3,971
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 6 N-Channel (3-Phase Bridge) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 600V |
| Current - Continuous Drain (Id) @ 25°C | 72A |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 72A, 10V |
| Vgs(th) (Max) @ Id | 3.9V @ 5.4mA |
| Gate Charge (Qg) (Max) @ Vgs | 518nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 14000pF @ 25V |
| Power - Max | 416W |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SP6 |
| Supplier Device Package | SP6-P |
Submit your RFQ for APTC60TAM35PG and get a quote within 24 hours.
