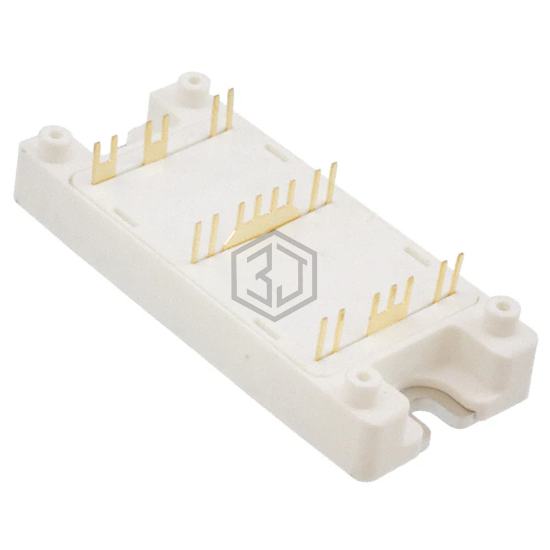

MOSFET 4N-CH 600V 39A SP4
APTC60HM70SCTG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 4N-CH 600V 39A SP4. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP4, power - max 250W.
In Stock: 8,262
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 4 N-Channel (Half Bridge) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 600V |
| Current - Continuous Drain (Id) @ 25°C | 39A |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 39A, 10V |
| Vgs(th) (Max) @ Id | 3.9V @ 2.7mA |
| Gate Charge (Qg) (Max) @ Vgs | 259nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 7000pF @ 25V |
| Power - Max | 250W |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SP4 |
| Supplier Device Package | SP4 |
