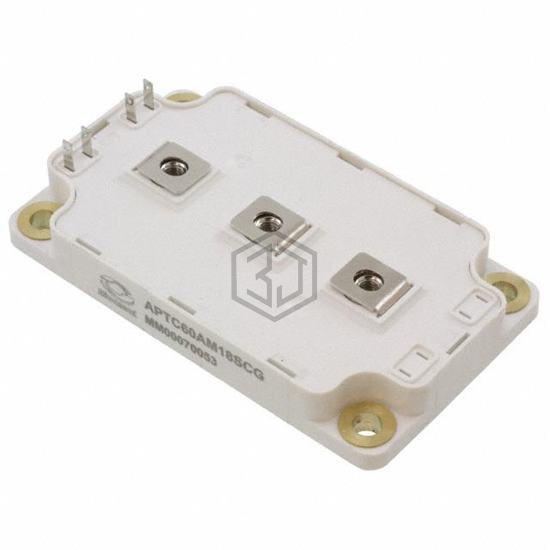

MOSFET 2N-CH 600V 143A SP6
APTC60AM18SCG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 2N-CH 600V 143A SP6. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP6, power - max 833W.
In Stock: 6,422
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Half Bridge) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 600V |
| Current - Continuous Drain (Id) @ 25°C | 143A |
| Rds On (Max) @ Id, Vgs | 18mOhm @ 71.5A, 10V |
| Vgs(th) (Max) @ Id | 3.9V @ 4mA |
| Gate Charge (Qg) (Max) @ Vgs | 1036nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 28000pF @ 25V |
| Power - Max | 833W |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SP6 |
| Supplier Device Package | SP6 |
Submit your RFQ for APTC60AM18SCG and get a quote within 24 hours.
