Mallory Sonalert Products Inc.
SPEAKER 8OHM 500MW TOP PORT 99DB

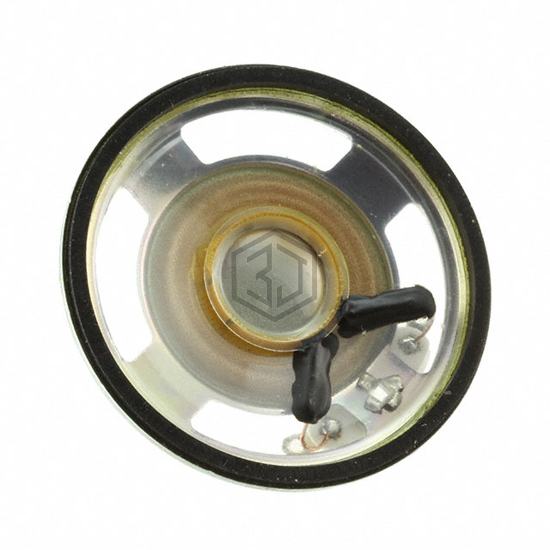

PSR44N08AK is a Speakers manufactured by Mallory Sonalert Products Inc.. SPEAKER 8OHM 500MW TOP PORT 99DB. Key specifications: size / dimension 1.752" Dia (44.50mm), termination Solder Eyelet(s), power - max 600 mW, frequency range 600 Hz ~ 4 kHz.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 600 Hz ~ 4 kHz |
| Frequency - Self Resonant | 600Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 83.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 600 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.752" Dia (44.50mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
Submit your RFQ for PSR44N08AK and get a quote within 24 hours.
