Mallory Sonalert Products Inc.
SPEAKR 45OHM 200MW TOP PORT 92DB

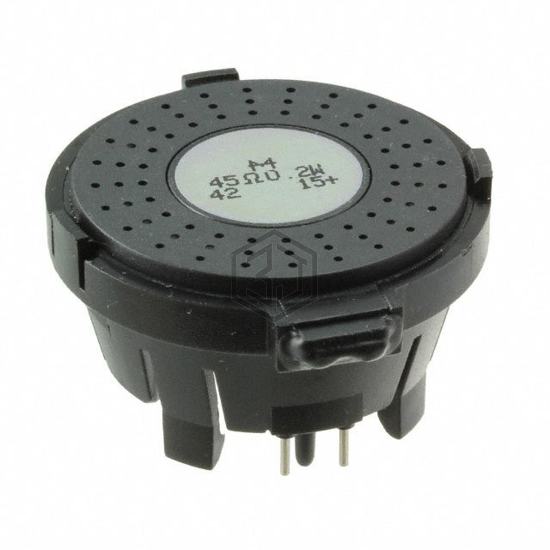

PSR37N45SK is a Speakers manufactured by Mallory Sonalert Products Inc.. SPEAKR 45OHM 200MW TOP PORT 92DB. Key specifications: size / dimension 1.457" Dia (37.00mm), termination PC Pins, power - max 400 mW, frequency range 480 Hz ~ 10 kHz.
In Stock: 9,304
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 480 Hz ~ 10 kHz |
| Frequency - Self Resonant | 480Hz |
| Impedance | 45 Ohms |
| Efficiency - dBA | 79.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 200 mW |
| Power - Max | 400 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | PC Pins |
| Size / Dimension | 1.457" Dia (37.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
Submit your RFQ for PSR37N45SK and get a quote within 24 hours.
