Mallory Sonalert Products Inc.
SPEAKER 8OHM 300MW TOP PORT 86DB

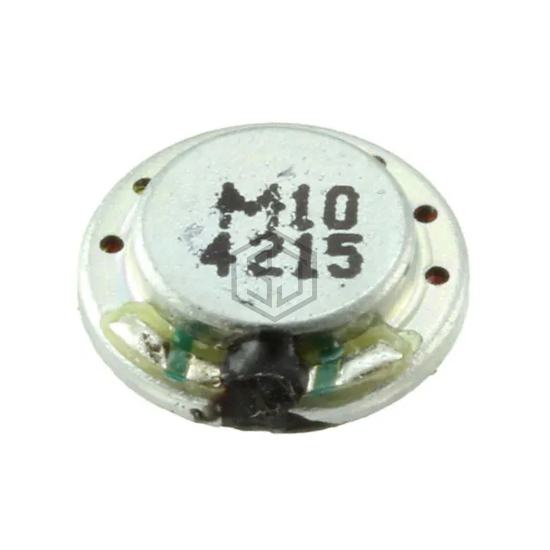

PSR10N08AK is a Speakers manufactured by Mallory Sonalert Products Inc.. SPEAKER 8OHM 300MW TOP PORT 86DB. Key specifications: size / dimension 0.394" Dia (10.00mm), termination Solder Pads, power - max 500 mW, frequency range 1.2 kHz ~ 20 kHz.
In Stock: 32
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 1.2 kHz ~ 20 kHz |
| Frequency - Self Resonant | 1200Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 72.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 300 mW |
| Power - Max | 500 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.114" (2.90mm) |
Submit your RFQ for PSR10N08AK and get a quote within 24 hours.
