Mallory Sonalert Products Inc.

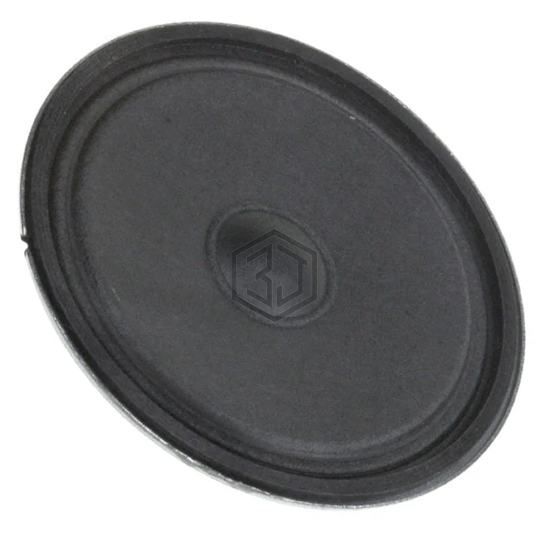

SPEAKER 8OHM 500MW TOP PORT 92DB
PSR-57N08A01-AQ is a Speakers manufactured by Mallory Sonalert Products Inc.. SPEAKER 8OHM 500MW TOP PORT 92DB. Key specifications: size / dimension 2.244" Dia (57.00mm), termination Solder Pads, power - max 1 W, frequency range 600 Hz ~ 4 kHz.
In Stock: 413
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 600 Hz ~ 4 kHz |
| Frequency - Self Resonant | 600Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 92.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 2.244" Dia (57.00mm) |
| Height - Seated (Max) | 0.331" (8.40mm) |
