Mallory Sonalert Products Inc.

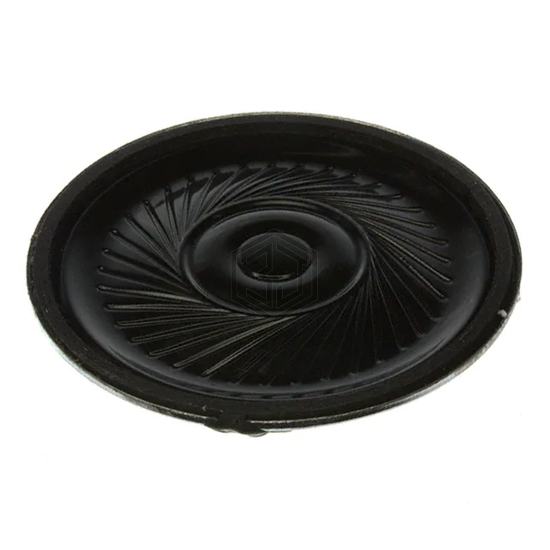

SPEAKER 8OHM 250MW TOP PORT 89DB
PSR-40N08A05-JQ is a Speakers manufactured by Mallory Sonalert Products Inc.. SPEAKER 8OHM 250MW TOP PORT 89DB. Key specifications: size / dimension 1.575" Dia (40.00mm), termination Solder Pads, power - max 500 mW, frequency range 500 Hz ~ 5 kHz.
In Stock: 3,655
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 500 Hz ~ 5 kHz |
| Frequency - Self Resonant | 500Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 89.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 250 mW |
| Power - Max | 500 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for PSR-40N08A05-JQ and get a quote within 24 hours.
