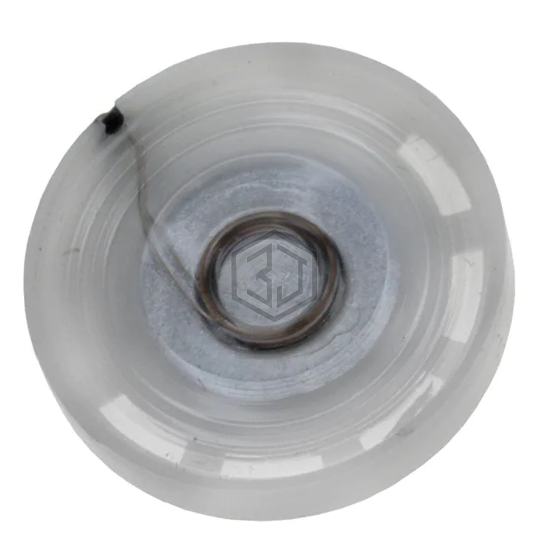

PSR-23F08S-JQ - Mallory Sonalert Products Inc. - Speakers

PSR-23F08S-JQ

Mallory Sonalert Products Inc.

SPEAKER 8OHM 250MW TOP PORT 81DB

PSR-23F08S-JQ is a Speakers manufactured by Mallory Sonalert Products Inc.. SPEAKER 8OHM 250MW TOP PORT 81DB. Key specifications: size / dimension 0.906" Dia (23.00mm), termination Solder Pads, power - max 300 mW, frequency range 900 Hz ~ 6.5 kHz.

In Stock: 2,195

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeGeneral Purpose
Frequency Range900 Hz ~ 6.5 kHz
Frequency - Self Resonant900Hz
Impedance8 Ohms
Efficiency - dBA81.00
Efficiency - Testing1W/1M
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated250 mW
Power - Max300 mW
Port LocationTop
ShapeRound
Material - ConePolyester, Polyethylene Terephthalate (PET)
Material - MagnetFerrite
Ingress Protection-
Ratings-
TerminationSolder Pads
Size / Dimension0.906" Dia (23.00mm)
Height - Seated (Max)0.197" (5.00mm)

Frequently Asked Questions

PSR-23F08S-JQ is a Speakers manufactured by Mallory Sonalert Products Inc.. SPEAKER 8OHM 250MW TOP PORT 81DB

The size of PSR-23F08S-JQ is 0.906" Dia (23.00mm).

The termination type of PSR-23F08S-JQ is Solder Pads.

The power rating of PSR-23F08S-JQ is 300 mW.

The resistance of PSR-23F08S-JQ is 8 Ohms.
