Mallory Sonalert Products Inc.
MIC MAG ANALOG OMNI -36DB 6MM D

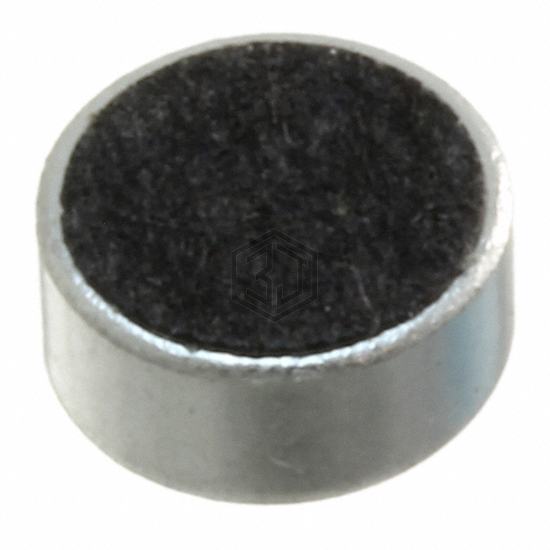

PMOF-6027NSN-36KDQ is a Microphones manufactured by Mallory Sonalert Products Inc.. MIC MAG ANALOG OMNI -36DB 6MM D. Key specifications: voltage - rated 2 V, current - supply 500 µA, size / dimension 0.236" Dia (6.00mm), termination Solder Pads.
In Stock: 85
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Electret Condenser |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 50 Hz ~ 10 kHz |
| Sensitivity | -36dB ±3dB @ 94dB SPL |
| S/N Ratio | 58dB |
| Impedance | 2.2 kOhms |
| Voltage - Rated | 2 V |
| Voltage Range | 1 V ~ 10 V |
| Current - Supply | 500 µA |
| Port Location | Top |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.236" Dia (6.00mm) |
| Height (Max) | 0.118" (3.00mm) |
| Shape | Circular |
Submit your RFQ for PMOF-6027NSN-36KDQ and get a quote within 24 hours.
