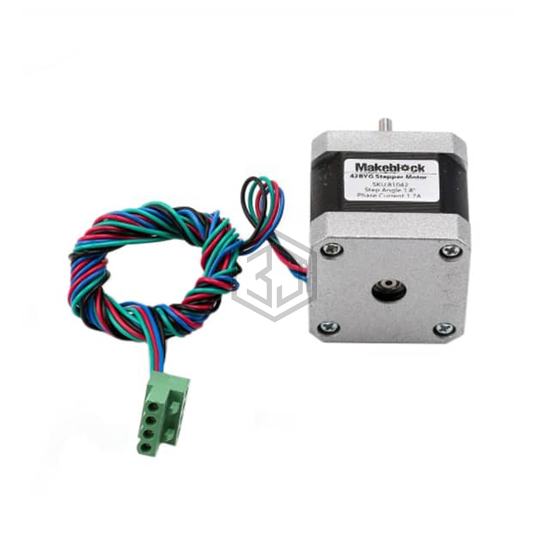

42BYG STEPPER MOTOR
81042 is a Stepper Motors manufactured by Makeblock Co., LTD.. 42BYG STEPPER MOTOR. Key specifications: voltage - rated 12VDC, current rating (amps) 1.7 A, size / dimension Square - 1.654" x 1.654" (42.00mm x 42.00mm), termination style Wire Leads with Connector.
In Stock: 6,345
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Coil Type | Bipolar |
| Voltage - Rated | 12VDC |
| Current Rating (Amps) | 1.7 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 56.3 / 400 |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| NEMA Frame Size | 17 |
| Diameter - Shaft | 0.157" (4.00mm) |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Termination Style | Wire Leads with Connector |
| Operating Temperature | - |
| Coil Resistance | 1.5 Ohms |
| Features | Flatted Shaft |
