Linear Integrated Systems, Inc.
TIGHTLY MATCHED, MONOLITHIC DUAL

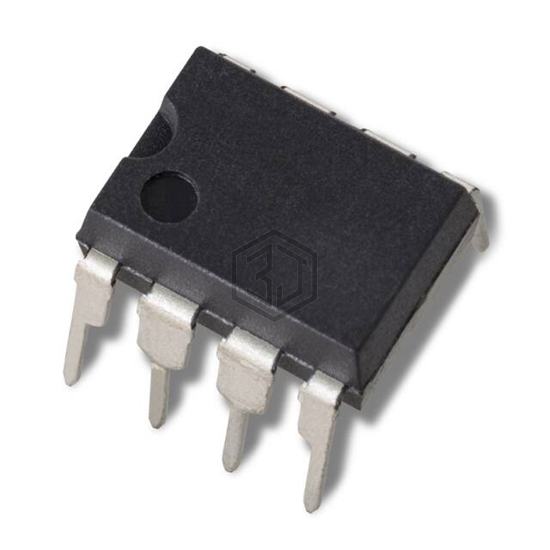

IT130A PDIP 8L is a Transistors - Bipolar (BJT) - Arrays manufactured by Linear Integrated Systems, Inc.. TIGHTLY MATCHED, MONOLITHIC DUAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case 8-DIP (0.300", 7.62mm), current - collector (ic) (max) 10mA.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | 2 PNP (Dual) |
| Current - Collector (Ic) (Max) | 10mA |
| Voltage - Collector Emitter Breakdown (Max) | 45V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50µA, 500µA |
| Current - Collector Cutoff (Max) | 1nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 225 @ 1mA, 5V |
| Power - Max | 500mW |
| Frequency - Transition | 110MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
Submit your RFQ for IT130A PDIP 8L and get a quote within 24 hours.
