CONN PC PIN CIRC 0.025DIA TIN

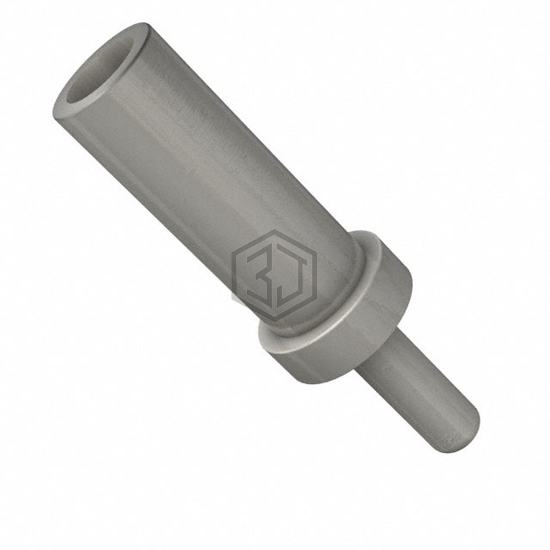

1424-4 is a Terminals - PC Pin, Single Post Connectors manufactured by Keystone Electronics. CONN PC PIN CIRC 0.025DIA TIN. Key specifications: mounting type Through Hole, contact material Brass, termination Swage.
In Stock: 5,265
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End |
| Pin Size - Above Flange | 0.025" (0.64mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.079" (2.01mm) |
| Length - Below Flange | 0.145" (3.68mm) |
| Length - Overall | 0.245" (6.22mm) |
| Flange Diameter | 0.062" (1.57mm) |
| Mounting Hole Diameter | 0.052" (1.32mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Insulation | Non-Insulated |
| Board Thickness | 0.125" (3.18mm) |
| Contact Material | Brass |
| Contact Finish | Tin |
| Contact Finish Thickness | 200.0µin (5.08µm) |
Submit your RFQ for 1424-4 and get a quote within 24 hours.
