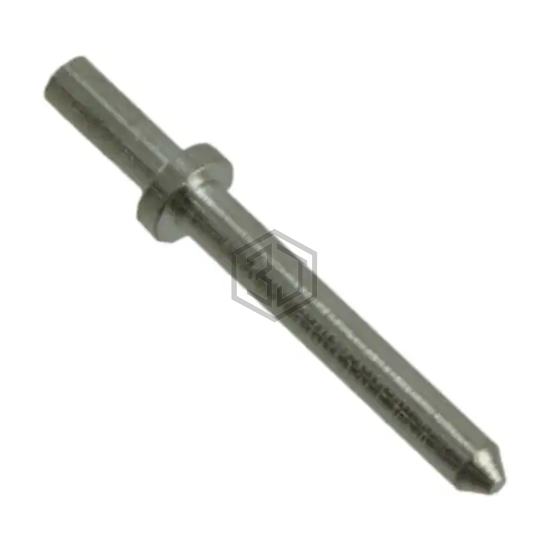

CONN PC PIN CIRC 0.040DIA TIN
1425-3 is a Terminals - PC Pin, Single Post Connectors manufactured by Keystone Electronics. CONN PC PIN CIRC 0.040DIA TIN. Key specifications: mounting type Through Hole, contact material Brass, termination Swage.
In Stock: 9,152
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End |
| Pin Size - Above Flange | 0.040" (1.02mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.300" (7.62mm) |
| Length - Below Flange | 0.113" (2.87mm) |
| Length - Overall | 0.433" (11.00mm) |
| Flange Diameter | 0.070" (1.77mm) |
| Mounting Hole Diameter | 0.043" (1.09mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Insulation | Non-Insulated |
| Board Thickness | 0.093" (2.36mm) |
| Contact Material | Brass |
| Contact Finish | Tin |
| Contact Finish Thickness | 200.0µin (5.08µm) |
Submit your RFQ for 1425-3 and get a quote within 24 hours.
