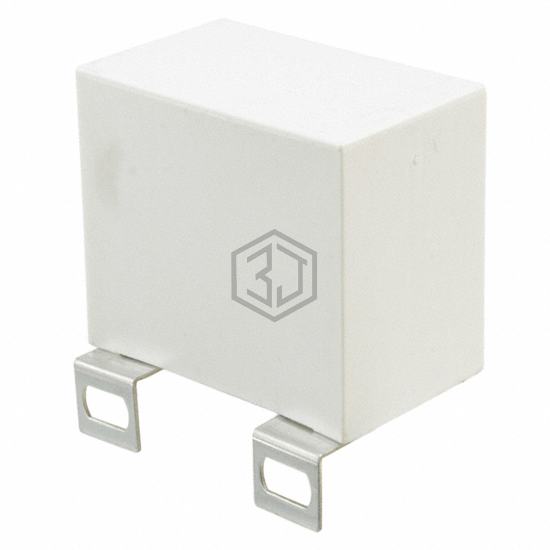

CAP FILM 3UF 5% 1.2KVDC SCREW
C4BSPBX4300ZANJ is a Film Capacitors manufactured by KEMET. CAP FILM 3UF 5% 1.2KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - dc 1200V (1.2kV), package / case Rectangular Box.
In Stock: 7,121
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 630V |
| Voltage Rating - DC | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 2.5 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 2.264" L x 1.378" W (57.50mm x 35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | 1.614" (41.00mm) |
| Applications | DC Link, DC Filtering; Snubber |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP386M530125YT4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3UF 5% 1.25KVDC SCREW | 98% | View |
| PMB2104300KBN | Nichicon | FILM CAP BOXED LUGS | 96% | View |
| PMB2104300KAP | Nichicon | FILM CAP BOXED LUGS | 96% | View |
| PMB2104300KVP | Nichicon | FILM CAP BOXED LUGS | 96% | View |
| PMB2104300KSL | Nichicon | FILM CAP BOXED LUGS | 96% | View |
| PMB2104300KFP | Nichicon | FILM CAP BOXED LUGS | 96% | View |
