Vishay Beyschlag/Draloric/BC Components
CAP FILM 3UF 5% 1.25KVDC SCREW

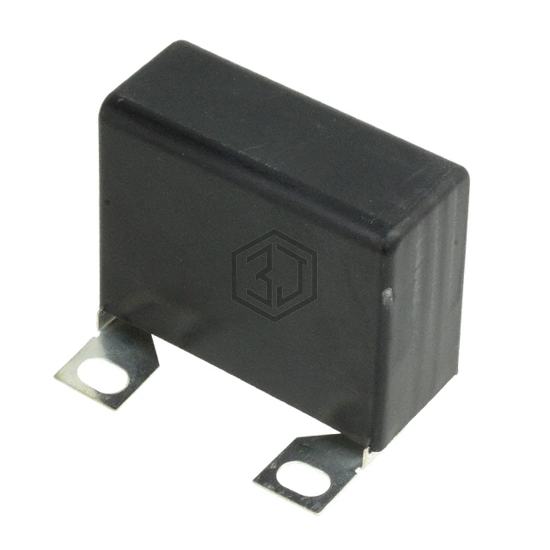

MKP386M530125YT4 is a Film Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP FILM 3UF 5% 1.25KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 105°C, voltage rating - dc 1250V (1.25kV), package / case Rectangular Box.
In Stock: 311
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 550V |
| Voltage Rating - DC | 1250V (1.25kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4 mOhms |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 2.283" L x 0.984" W (58.00mm x 25.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | 1.457" (37.00mm) |
| Applications | Snubber |
| Ratings | - |
| Features | Low ESR |
