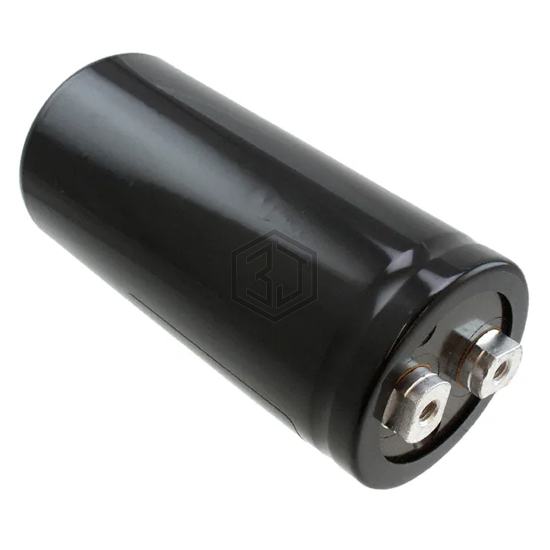

CAP ALUM 33000UF 20% 63V SCREW
ALS30A333KF063 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 33000UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,720
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 10mOhm @ 100Hz |
| Lifetime @ Temp. | 18000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17.4 A @ 100 Hz |
| Ripple Current @ High Frequency | 18 A @ 10 kHz |
| Impedance | 9 mOhms |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.213" (107.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210168333E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 20% 63V SCREW | 92% | View |
| B41550E7339Q000 | EPCOS - TDK Electronics | CAP ALUM 33000UF 40V SCREW | 79% | View |
| MAL210639333E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 100V SCREW | 70% | View |
| 100LSQ33000M64X119 | Rubycon | CAP ALUM 33000UF 20% 100V SCREW | 68% | View |
| ALS81U333NT200 | KEMET | CAP ALUM 33000UF 20% 200V SCREW | 66% | View |
| LNR1K333MSE | Nichicon | CAP ALUM 33000UF 20% 80V SCREW | 65% | View |
