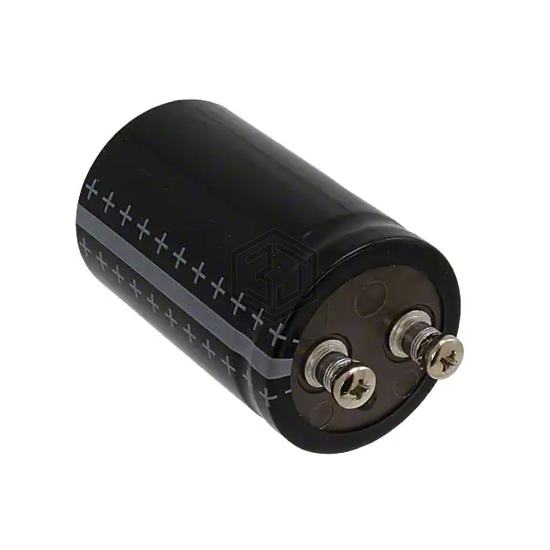

CAP ALUM 33000UF 40V SCREW
B41550E7339Q000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 33000UF 40V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 105°C, voltage - rated 40 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,326
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33000 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 12mOhm @ 100Hz |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 12 mOhms |
| Lead Spacing | 1.122" (28.50mm) |
| Size / Dimension | 2.532" Dia (64.30mm) |
| Height - Seated (Max) | 3.217" (81.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41550E7339Q000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 101323U040DC2B | Cornell Dubilier Knowles | CAP ALUM 40V POLAR | 98% | View |
| B41554E7339Q000 | EPCOS - TDK Electronics | CAP ALUM 33000UF 40V SCREW | 88% | View |
| 101C323U050CC2B | Cornell Dubilier Knowles | CAP ALUM 50V POLAR | 83% | View |
| B41550E5339Q000 | EPCOS - TDK Electronics | CAP ALUM 33000UF 25V SCREW | 81% | View |
| 101C323U050CH2B | Cornell Dubilier Knowles | CAP ALUM 50V POLAR | 78% | View |
| E74D6R3LPN313MA48U | United Chemi-Con | CAP ALUM 31000UF 20% 6.3V SCREW | 51% | View |
