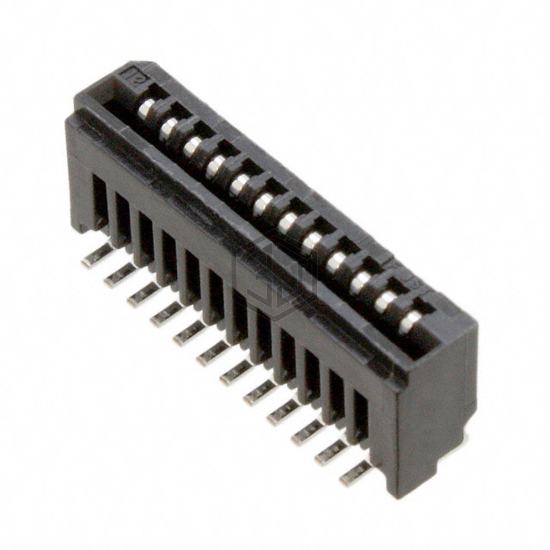

CONN FFC VERT 12POS 1.00MM SMD
12FMN-BMT-A-TF(LF)(SN) is a FFC, FPC (Flat Flexible) Connectors manufactured by JST Sales America Inc.. CONN FFC VERT 12POS 1.00MM SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C, voltage rating 50V, housing material Polyamide (PA6T), Nylon 6T.
In Stock: 14,285
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 12 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.201" (5.10mm) |
| Locking Feature | - |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Actuator Material | - |
| Features | Low Insertion Force (LIF) |
| Voltage Rating | 50V |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 12FMN-BMT-A-TF(LF)(SN) and get a quote within 24 hours.
