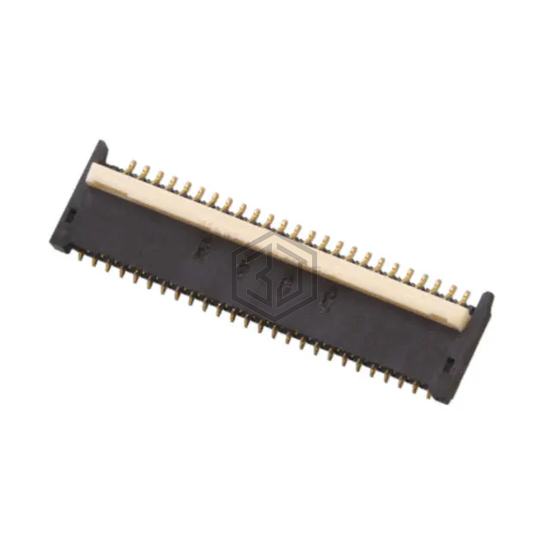

CONN FPC 51POS 0.20MM R/A
FR02C051JA1-R5000 is a FFC, FPC (Flat Flexible) Connectors manufactured by JAE Electronics. CONN FPC 51POS 0.20MM R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 85°C, voltage rating 50V, housing material Plastic.
In Stock: 5,440
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top and Bottom |
| Number of Positions | 51 |
| Pitch | 0.008" (0.20mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.032" (0.81mm) |
| Locking Feature | Flip Lock, Backlock |
| Cable End Type | Tabbed or Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Plastic |
| Actuator Material | Plastic |
| Features | Low Insertion Force (LIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | - |
Submit your RFQ for FR02C051JA1-R5000 and get a quote within 24 hours.
