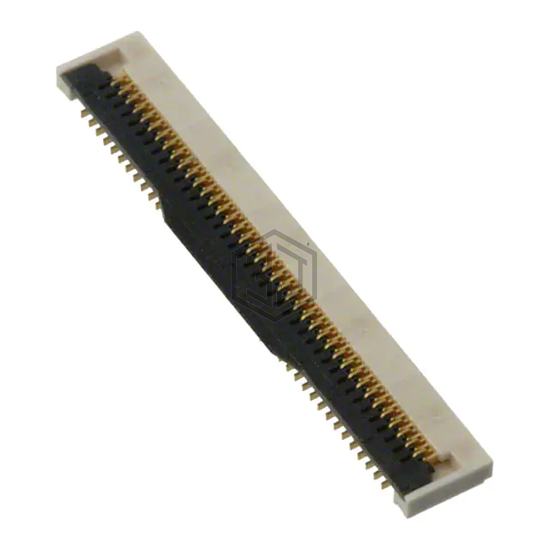

CONN FPC BOTTOM 81POS 0.20MM R/A
FF0881SA1 is a FFC, FPC (Flat Flexible) Connectors manufactured by JAE Electronics. CONN FPC BOTTOM 81POS 0.20MM R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 85°C, voltage rating 50V, housing material Plastic.
In Stock: 6,564
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 81 |
| Pitch | 0.008" (0.20mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.15mm |
| Height Above Board | 0.039" (1.00mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Tabbed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Plastic |
| Actuator Material | Plastic |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for FF0881SA1 and get a quote within 24 hours.
