IXYS Integrated Circuits Division
GATE DRIVER HIGH/LOW SIDE 2A

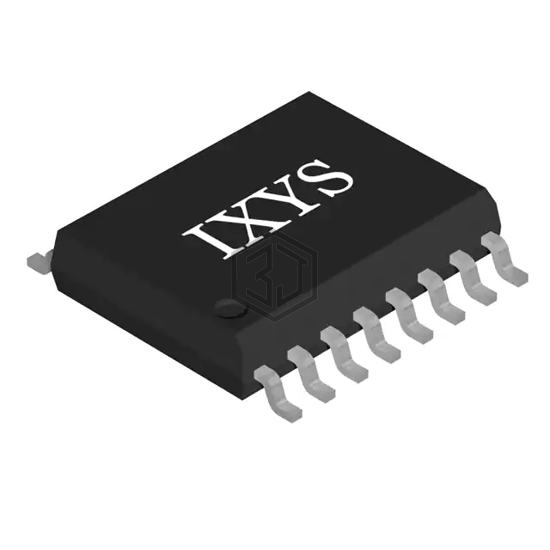

LF2110BTR is a PMIC - Gate Drivers manufactured by IXYS Integrated Circuits Division. GATE DRIVER HIGH/LOW SIDE 2A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 10V ~ 20V, package / case 16-SOIC (0.295", 7.50mm Width).
In Stock: 6,989
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 5V, 9.5V |
| Current - Peak Output (Source, Sink) | 2.5A, 2.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 500 V |
| Rise / Fall Time (Typ) | 15ns, 13ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IRS2113STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 16SOIC | 91% | View |
| FAN73901MX | onsemi | IC GATE DRVR HALF-BRIDGE 8SOIC | 78% | View |
| FAN73933MX | onsemi | IC GATE DRVR HALF-BRIDGE 14SOP | 71% | View |
| MPQ1924HS-LF-Z | Monolithic Power Systems Inc. | IC GATE DRVR HALF-BRIDGE 8SOIC | 65% | View |
| MPQ18021HS-A-LF-Z | Monolithic Power Systems Inc. | IC GATE DRVR HALF-BRIDGE 8SOIC | 65% | View |
| UCC27282QDQ1 | Texas Instruments | 120V LOW COST HS/LS DRIVER- D PK | 60% | View |
