IC GATE DRVR HALF-BRIDGE 8SOIC

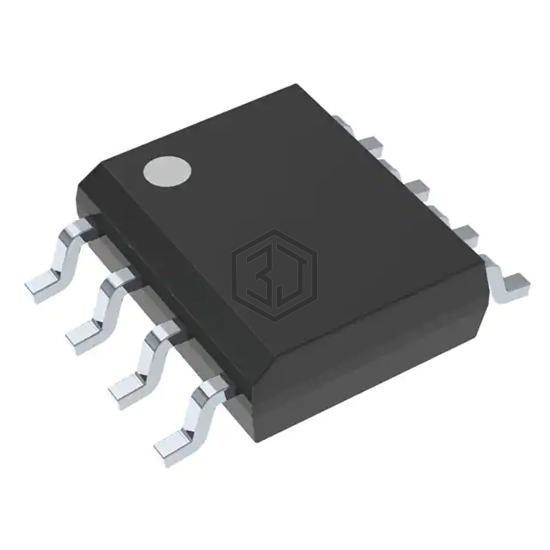

MPQ1924HS-LF-Z is a PMIC - Gate Drivers manufactured by Monolithic Power Systems Inc.. IC GATE DRVR HALF-BRIDGE 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9V ~ 12V, package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 3,120
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 9V ~ 12V |
| Logic Voltage - VIL, VIH | 1V, 2.4V |
| Current - Peak Output (Source, Sink) | 2.5A, 2.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 115 V |
| Rise / Fall Time (Typ) | 12ns, 9ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MP1921HQ-A-LF-P | Monolithic Power Systems Inc. | IC GATE DRVR HALF-BRIDGE 8QFN | 100% | View |
| MPQ18021HS-A-LF-Z | Monolithic Power Systems Inc. | IC GATE DRVR HALF-BRIDGE 8SOIC | 100% | View |
| UCC27282QDQ1 | Texas Instruments | 120V LOW COST HS/LS DRIVER- D PK | 93% | View |
| MP1907GQ-P | Monolithic Power Systems Inc. | IC GATE DRVR HALF-BRIDGE 10QFN | 91% | View |
| MP1907AGQ-P | Monolithic Power Systems Inc. | IC GATE DRVR HALF-BRIDGE 10QFN | 91% | View |
| LTC4444HMS8E#PBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8MSOP | 87% | View |
Submit your RFQ for MPQ1924HS-LF-Z and get a quote within 24 hours.
