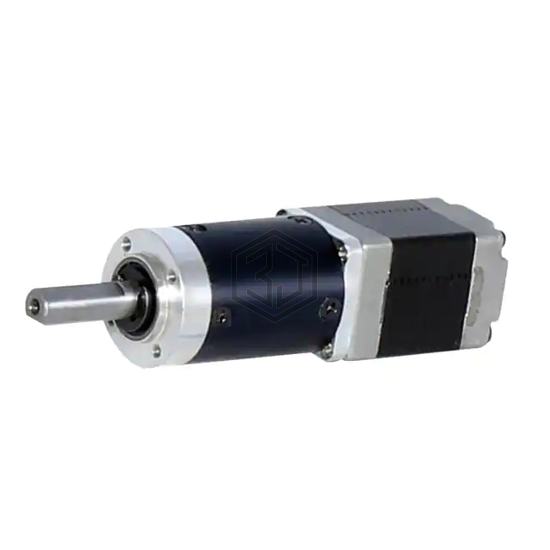

NEMA8 Hybrid Planetary Stepper M
MOT-I-81511 is a Stepper Motors manufactured by ISL Products International. NEMA8 Hybrid Planetary Stepper M. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 4.32VDC, current rating (amps) 800 mA, size / dimension Round - 0.236" Dia (6.00mm).
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid Gear Motor |
| Coil Type | Bipolar |
| Voltage - Rated | 4.32VDC |
| Current Rating (Amps) | 800 mA |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 220.25 / 1555 |
| Size / Dimension | Round - 0.236" Dia (6.00mm) |
| NEMA Frame Size | 8 |
| Diameter - Shaft | 0.236" (6.00mm) |
| Length - Shaft and Bearing | 3.854" (97.90mm) |
| Mounting Hole Spacing | 0.709" (18.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 5.4 Ohms |
| Features | - |
