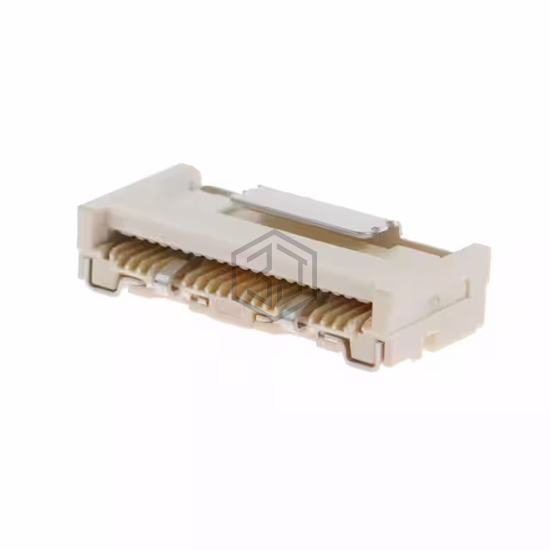

CONN FFC R/A .5MM 20POS
IMSA-11501S-20B-GFN1 is a FFC, FPC (Flat Flexible) Connectors manufactured by IRISO USA Inc.. CONN FFC R/A .5MM 20POS. Key specifications: mounting type Surface Mount, Right Angle, voltage rating 50V, housing material Liquid Crystal Polymer (LCP), termination Solder.
In Stock: 862
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 20 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.134" (3.40mm) |
| Locking Feature | - |
| Cable End Type | Notched |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | - |
| Features | Solder Retention |
| Voltage Rating | 50V |
| Operating Temperature | - |
| Material Flammability Rating | UL94 V-0 |
