GENERAL PURPOSE DRIVER, 24V, 4A

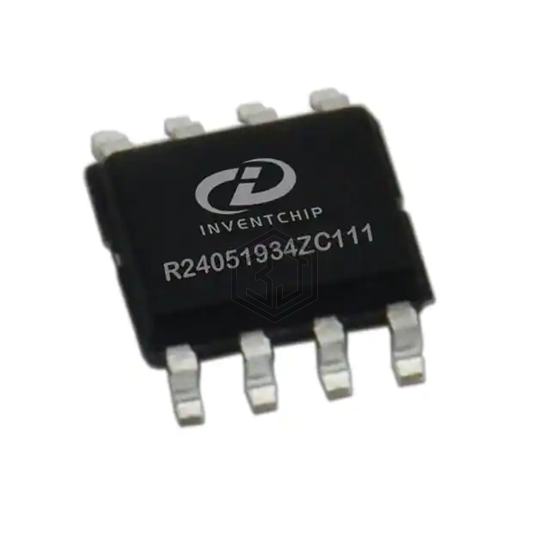

IVCR2405DR is a PMIC - Gate Drivers manufactured by Inventchip. GENERAL PURPOSE DRIVER, 24V, 4A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 20V, package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 4,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 20V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 6ns, 6ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IXDD604D2TR | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8DFN | 94% | View |
| ADP3625ARHZ-RL | Analog Devices Inc. | IC GATE DRVR LOW-SIDE 8MSOP | 92% | View |
| ADP3624ARHZ | Analog Devices Inc. | IC GATE DRVR LOW-SIDE 8MSOP | 92% | View |
| 2EDF9275FXUMA1 | Infineon Technologies | IC IGBT DVR | 76% | View |
| 2EDS8265HXUMA1 | Infineon Technologies | IC GATE DRVR HALF-BRIDG DSO16-30 | 76% | View |
| UCC27714D | Texas Instruments | IC GATE DRVR HALF-BRIDGE 14SOIC | 73% | View |
Submit your RFQ for IVCR2405DR and get a quote within 24 hours.
