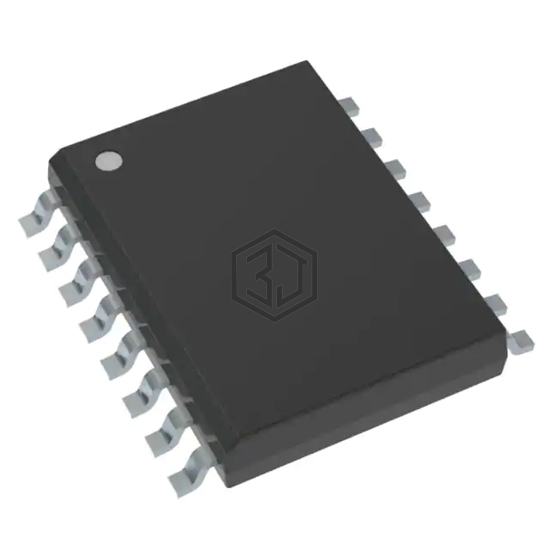

IC GATE DRVR HALF-BRIDG DSO16-30
2EDS8265HXUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDG DSO16-30. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 20V, package / case 16-SOIC (0.295", 7.50mm Width).
In Stock: 5,380
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 20V |
| Logic Voltage - VIL, VIH | -, 1.65V |
| Current - Peak Output (Source, Sink) | 4A, 8A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 6.5ns, 4.5ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | PG-DSO-16-30 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IVCR2405DR | Inventchip | GENERAL PURPOSE DRIVER, 24V, 4A | 76% | View |
| UCC27714DR | Texas Instruments | IC GATE DRVR HALF-BRIDGE 14SOIC | 76% | View |
| IXDD604D2TR | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8DFN | 72% | View |
| MIC4223YM | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 64% | View |
| UCC27324DR | Texas Instruments | IC GATE DRVR LOW-SIDE 8SOIC | 59% | View |
| UCC27424MDGNREP | Texas Instruments | IC GATE DRVR LOW-SIDE 8MSOP | 58% | View |
Submit your RFQ for 2EDS8265HXUMA1 and get a quote within 24 hours.
