SWITCHING CONTROLLER

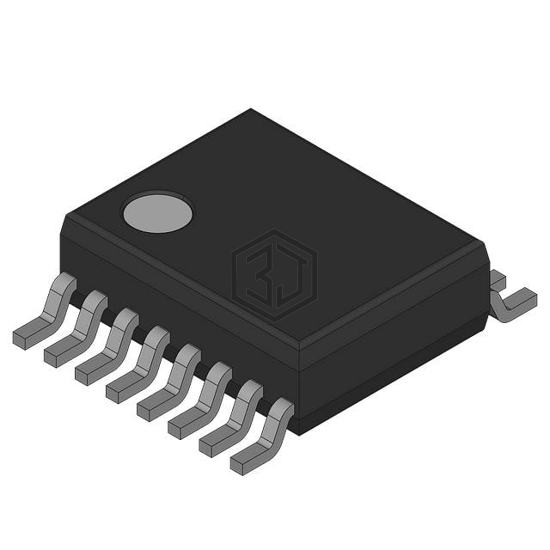

ISL6224CAZ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Intersil. SWITCHING CONTROLLER. Key specifications: mounting type Surface Mount, operating temperature -10°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.75V ~ 5.25V, package / case 16-SSOP (0.154", 3.90mm Width).
In Stock: 7,320
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Frequency - Switching | 300kHz, 600kHz |
| Duty Cycle (Max) | 94% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Phase Control, Power Good, Soft Start |
| Operating Temperature | -10°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
ISL6224CAZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SP6133ER1-L/MTR | MaxLinear, Inc. | IC REG CTRLR BUCK 16QFN | 99% | View |
| ISL6520AIRZ-TS2698 | Renesas Electronics America Inc | IC REG CTRLR BUCK 16QFN | 99% | View |
| AP3586BMTR-G1 | Diodes Incorporated | IC REG CTRLR BUCK 8SOIC | 99% | View |
| ISL6520BIR | Renesas Electronics America Inc | IC REG CTRLR BUCK 16QFN | 99% | View |
| RT9214APS | Richtek USA Inc. | IC REGULATOR CONTROLLER | 99% | View |
| ISL6520AIBZ-T | Intersil | SWITCHING CONTROLLER | 99% | View |
Submit your RFQ for ISL6224CAZ and get a quote within 24 hours.
