Renesas Electronics America Inc
IC REG CTRLR BUCK 16QFN

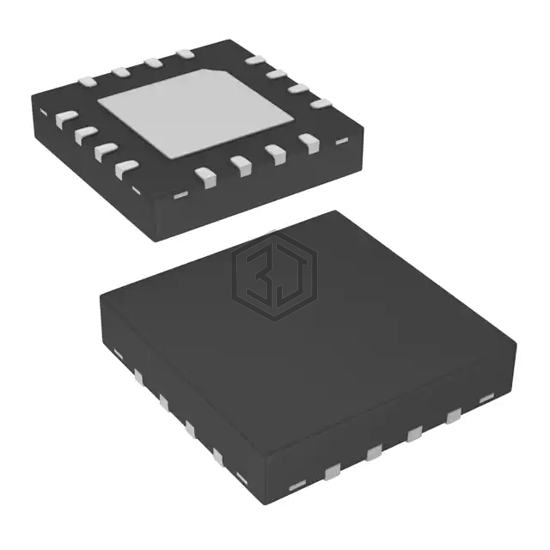

ISL6520BIR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Renesas Electronics America Inc. IC REG CTRLR BUCK 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 5.5V, package / case 16-VQFN Exposed Pad.
In Stock: 6,916
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Frequency - Switching | 300kHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Phase Control |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
ISL6520BIR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX1627ESA+T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 8SOIC | 95% | View |
| MAX1954EUB+T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 10UMAX | 95% | View |
| S-8533A52AFT-TB-U | ABLIC Inc. | IC REG CTRLR BUCK 8TSSOP | 94% | View |
| S-8521F30MC-BPPT2U | ABLIC Inc. | IC REG CTRLR BUCK SOT23-5 | 93% | View |
| R1224N302G-TR-FE | Nisshinbo Micro Devices Inc. | 18.5V INPUT PWM/VFM STEP-DOWN DC | 92% | View |
| TPS5120DBTR | Texas Instruments | IC REG CTRLR BUCK 30TSSOP | 84% | View |
Submit your RFQ for ISL6520BIR and get a quote within 24 hours.
