4-CHANNEL CMOS ANALOG MUX

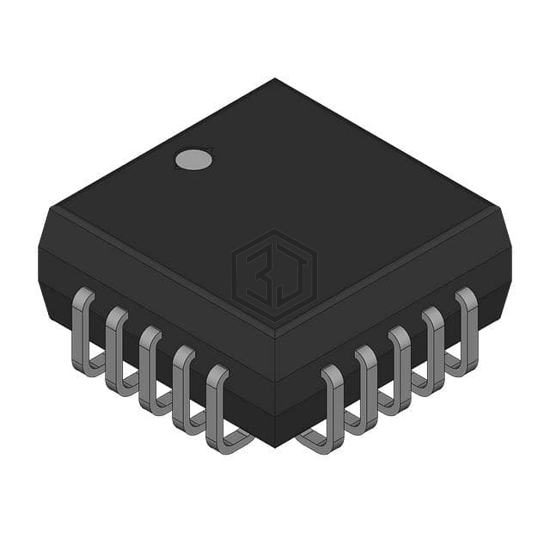

HI4P0509-5 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. 4-CHANNEL CMOS ANALOG MUX. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 75°C (TA), package / case 20-LCC (J-Lead), number of circuits 2.
In Stock: 14,831
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 20Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 250ns, 250ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 75°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
HI4P0509-5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI9P0506-5 | Harris Corporation | SINGLE 16-CHANNEL ANALOG MUX | 89% | View |
| MAX4622ESE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT 16SOIC | 56% | View |
| MAX4623CSE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DPST DUAL 16SOIC | 56% | View |
| MAX4622CSE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT 16SOIC | 56% | View |
| MAX4613ETE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16TQFN | 50% | View |
| MAX4613EUE+ | Analog Devices Inc./Maxim Integrated | IC SW QUAD SPST N/O-N/C 16-TSSOP | 50% | View |
Submit your RFQ for HI4P0509-5 and get a quote within 24 hours.
