SINGLE 16-CHANNEL ANALOG MUX

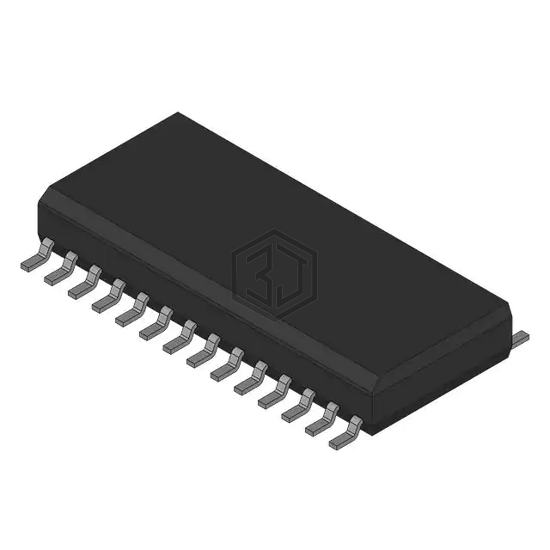

HI9P0506-5 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Harris Corporation. SINGLE 16-CHANNEL ANALOG MUX. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 75°C, package / case 28-SOIC (0.295", 7.50mm Width), number of circuits 1.
In Stock: 3,228
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | 16PST |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 20Ohm |
| Voltage - Supply, Single (V+) | ±15V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 250ns (Typ), 250ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 52pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 75°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI9P0508-5Z96 | Renesas Electronics America Inc | IC MULTIPLEXER 8X1 16SOIC | 100% | View |
| HI9P0506-9Z | Renesas Electronics America Inc | IC MULTIPLEXER 16X1 28SOIC | 100% | View |
| HI9P0509-9 | Harris Corporation | 4-CHANNEL ANALOG MUX | 89% | View |
| DG506BEQ-T1-GE3 | Vishay Siliconix | IC MUX ANA DUAL 16/8CH 28TSSOP | 56% | View |
| DG506BEW-T1-GE3 | Vishay Siliconix | IC MUX ANA DUAL 16/8CH 28SOIC | 56% | View |
| DG309DY+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16SOIC | 52% | View |
Submit your RFQ for HI9P0506-5 and get a quote within 24 hours.
