SINGLE-ENDED MULTIPLEXER, 1 FUNC

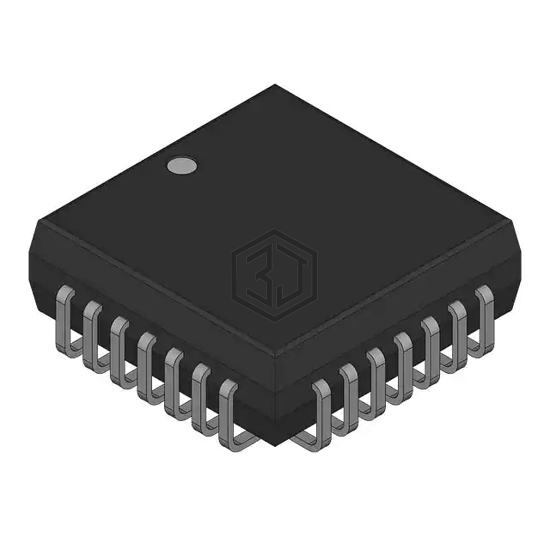

HI4P0506-5Z is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. SINGLE-ENDED MULTIPLEXER, 1 FUNC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 75°C (TA), package / case 28-LCC (J-Lead), number of circuits 1.
In Stock: 12,444
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 20Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 250ns, 250ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 52pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 75°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI9P0506-5 | Harris Corporation | SINGLE 16-CHANNEL ANALOG MUX | 100% | View |
| HI9P0508-5 | Intersil | SINGLE 8-CHANNEL CMOS ANALOG MUX | 100% | View |
| HI9P0509-5Z96 | Intersil | DIFFERENTIAL MUX, 4 CHANNEL | 89% | View |
| DG506BEQ-T1-GE3 | Vishay Siliconix | IC MUX ANA DUAL 16/8CH 28TSSOP | 56% | View |
| MAX354EWE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16SOIC | 50% | View |
| MAX354CWE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16SOIC | 50% | View |
Submit your RFQ for HI4P0506-5Z and get a quote within 24 hours.
