4-CHANNEL CMOS ANALOG MUX

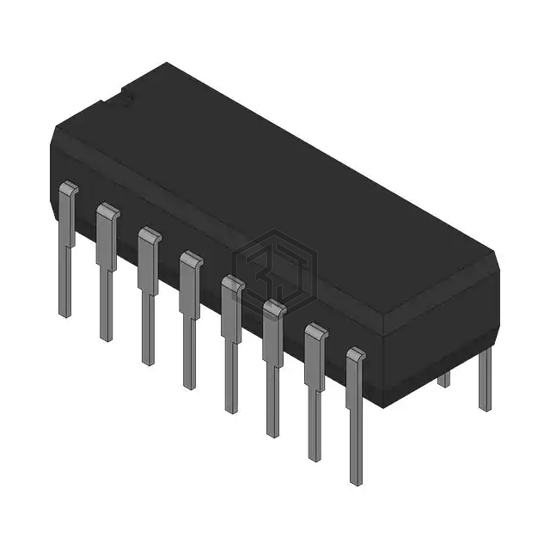

HI3-0509-5 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. 4-CHANNEL CMOS ANALOG MUX. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 75°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 2.
In Stock: 14,049
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 20Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 250ns, 250ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 75°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
HI3-0509-5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI3-0508-5 | Harris Corporation | SINGLE-ENDED MULTIPLEXER, 1 FUNC | 89% | View |
| HI3-0508-5Z | Renesas Electronics America Inc | IC MULTIPLEXER 8X1 16DIP | 89% | View |
| HI1-0506-5 | Renesas Electronics America Inc | IC MULTIPLEXER 16X1 28CDIP | 89% | View |
| HI1-0306-5 | Harris Corporation | DUAL DPST CMOS ANALOG SWITCH | 68% | View |
| IH5142CJE | Harris Corporation | HIGH-LEVEL CMOS ANALOG SWITCH | 52% | View |
| MAX4613EPE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16DIP | 50% | View |
