Renesas Electronics America Inc

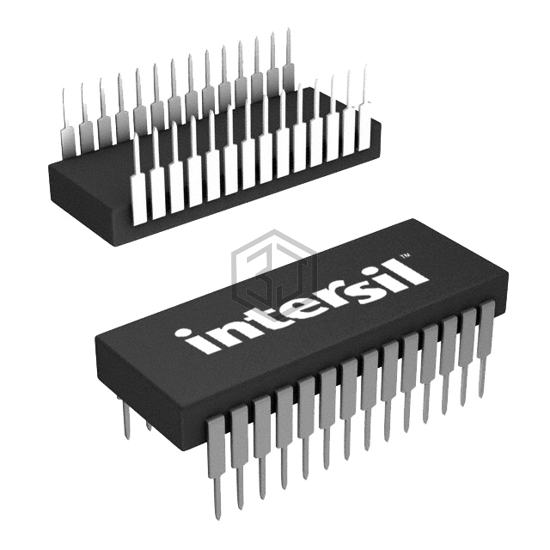

IC MULTIPLEXER 16X1 28CDIP
HI1-0506-5 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MULTIPLEXER 16X1 28CDIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 75°C (TA), package / case 28-CDIP (0.600", 15.24mm), number of circuits 1.
In Stock: 6,733
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 20Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 250ns, 250ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 52pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 75°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CerDip |
HI1-0506-5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI3-0508-5 | Harris Corporation | SINGLE-ENDED MULTIPLEXER, 1 FUNC | 100% | View |
| HI1-0509-9 | Harris Corporation | 4-CHANNEL ANALOG MUX | 89% | View |
| IH5142CJE | Harris Corporation | HIGH-LEVEL CMOS ANALOG SWITCH | 67% | View |
| HI1-0306-2 | Harris Corporation | DUAL DPST CMOS ANALOG SWITCH | 57% | View |
| HI1-0306-5 | Harris Corporation | DUAL DPST CMOS ANALOG SWITCH | 57% | View |
| HI1-0304-8 | Harris Corporation | DUAL SPST CMOS ANALOG SWITCH | 57% | View |
Submit your RFQ for HI1-0506-5 and get a quote within 24 hours.
