HALF BRIDGE PERIPHERAL DRIVER

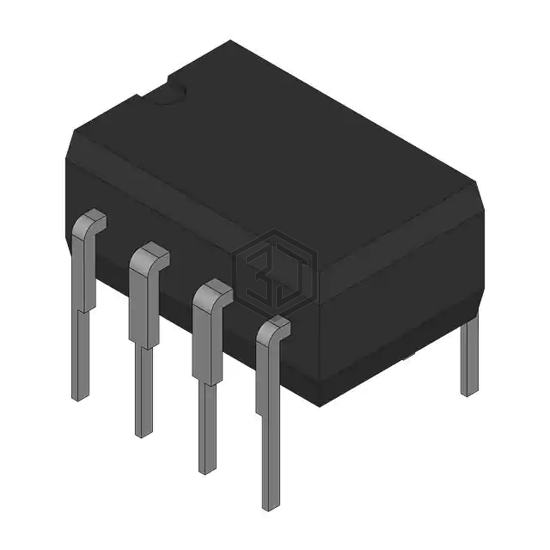

EL7156CN is a PMIC - Gate Drivers manufactured by Intersil. HALF BRIDGE PERIPHERAL DRIVER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 16.5V, package / case 8-DIP (0.300", 7.62mm).
In Stock: 3,077
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT |
| Voltage - Supply | 4.5V ~ 16.5V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 3.5A, 3.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 14.5ns, 15ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
EL7156CN is Obsolete. Consider these compatible alternatives:
