International Components Corp.

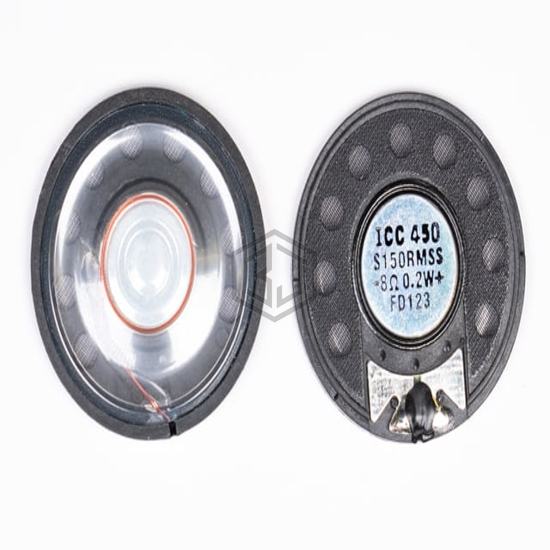

MINIATURE SPEAKER, 8 OHM
S150RMSS is a Speakers manufactured by International Components Corp.. MINIATURE SPEAKER, 8 OHM. Key specifications: size / dimension 1.417" Dia (36.00mm), termination Solder Eyelet, power - max 200 mW, frequency range 150 Hz ~ 6 kHz.
In Stock: 250
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Low Profile |
| Frequency Range | 150 Hz ~ 6 kHz |
| Frequency - Self Resonant | 420Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 76.00 |
| Efficiency - Testing | 100mW/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 100 mW |
| Power - Max | 200 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Rare Earth |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet |
| Size / Dimension | 1.417" Dia (36.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for S150RMSS and get a quote within 24 hours.
