International Components Corp.

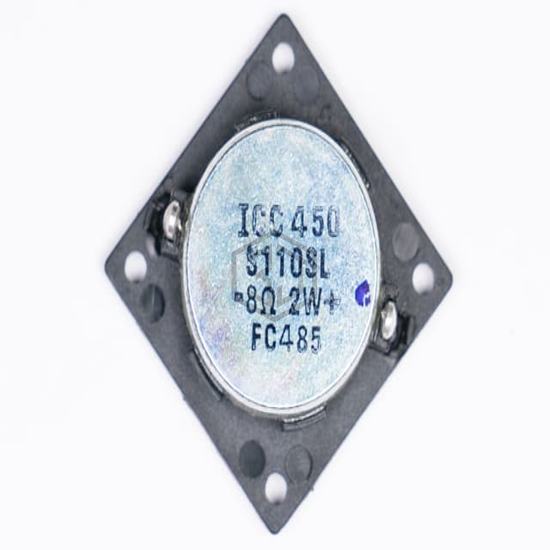

MINIATURE SPEAKER, 8 OHM
S110SL-REV 1 is a Speakers manufactured by International Components Corp.. MINIATURE SPEAKER, 8 OHM. Key specifications: size / dimension 1.102" L x 1.102" W (28.00mm x 28.00mm), termination Solder Eyelet(s), power - max 3 W, frequency range 150 Hz ~ 20 kHz.
In Stock: 378
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Low Profile |
| Frequency Range | 150 Hz ~ 20 kHz |
| Frequency - Self Resonant | 270Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 82.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 3 W |
| Port Location | Top |
| Shape | Square |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Rare Earth |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.102" L x 1.102" W (28.00mm x 28.00mm) |
| Height - Seated (Max) | 0.425" (10.80mm) |
