International Components Corp.

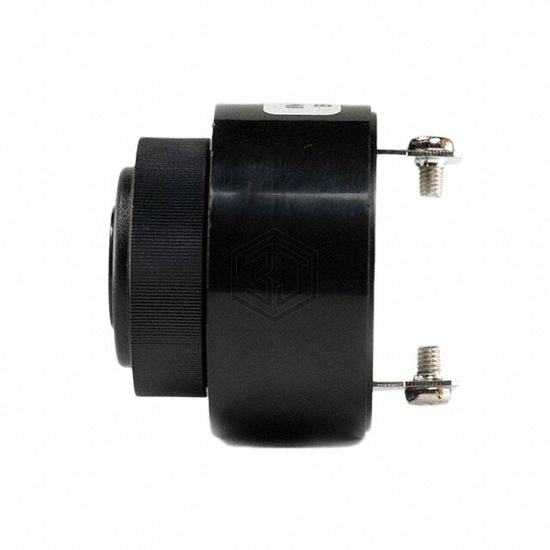

BUZZER PIEZO 12V 43.5MM PNL MNT
BRP4535S-12-C is a Alarms, Buzzers, and Sirens manufactured by International Components Corp.. BUZZER PIEZO 12V 43.5MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -20°C ~ 60°C, voltage - rated 12 V, current - supply 30mA.
In Stock: 160
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 1 ~ 15V |
| Frequency | 2.9kHz |
| Technology | Piezo |
| Operating Mode | Continuous |
| Duration | - |
| Sound Pressure Level (SPL) | 100dB @ 12V, 30cm |
| Current - Supply | 30mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Screw Terminals |
| Size / Dimension | 1.713" Dia (43.50mm) |
| Height - Seated (Max) | 1.358" (34.50mm) |
