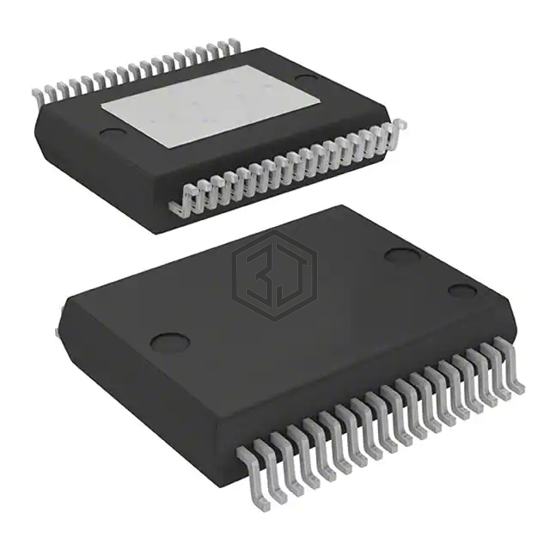

IC DRIVER H-BRIDGE DSO-36
TLE9202EDXUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC DRIVER H-BRIDGE DSO-36. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 2.9V ~ 5.5V, package / case 36-BFSOP (0.295", 7.50mm Width) Exposed Pad.
In Stock: 3,567
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (2) |
| Applications | DC Motors, General Purpose |
| Interface | SPI |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 100mOhm LS, 100mOhm HS |
| Current - Output / Channel | 6A |
| Current - Peak Output | - |
| Voltage - Supply | 2.9V ~ 5.5V |
| Voltage - Load | 5V ~ 28V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | - |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 36-BFSOP (0.295", 7.50mm Width) Exposed Pad |
| Supplier Device Package | PG-DSO-36-72 |
TLE9202EDXUMA1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC7061EMSE#TRPBF | Analog Devices Inc. | 100V DUAL HIGH-SIDE GATE DRVR W/ | 90% | View |
| LTC7061IMSE#WTRPBF | Analog Devices Inc. | 100V DUAL HIGH-SIDE GATE DRVR W/ | 90% | View |
| LTC7061EMSE#PBF | Analog Devices Inc. | 100V DUAL HIGH-SIDE GATE DRVR W/ | 90% | View |
| TLE9201SGAUMA1 | Infineon Technologies | IC DRIVER 12DSO | 90% | View |
| LTC7060IMSE#WTRPBF | Analog Devices Inc. | 100V HALF BRIDGE DRIVER W/ FLOAT | 84% | View |
| LTC7060EMSE#WTRPBF | Analog Devices Inc. | 100V HALF BRIDGE DRIVER | 84% | View |
Submit your RFQ for TLE9202EDXUMA1 and get a quote within 24 hours.
