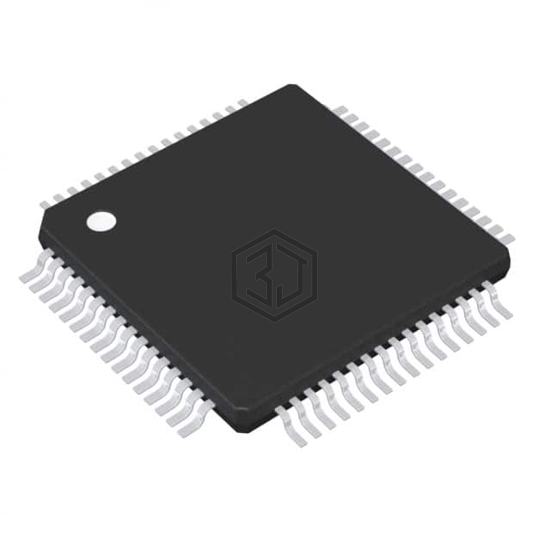

TLE9180D32QKXUMA1
DRIVER_IC
TLE9180D32QKXUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. DRIVER_IC. Key specifications: mounting type Surface Mount, voltage - supply 6V ~ 60V, package / case 64-LQFP Exposed Pad.
In Stock: 8,791
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 6 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 6V ~ 60V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 2A |
| Input Type | - |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 35ns, 35ns |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP Exposed Pad |
| Supplier Device Package | PG-LQFP-64-27 |
Frequently Asked Questions
TLE9180D32QKXUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. DRIVER_IC
The mounting type of TLE9180D32QKXUMA1 is Surface Mount.
The supply voltage of TLE9180D32QKXUMA1 is 6V ~ 60V.
The package type of TLE9180D32QKXUMA1 is 64-LQFP Exposed Pad.
Alternative Products
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AMT49101KJPTR-B-3 | Allegro MicroSystems | IC GATE DRVR HALF-BRIDGE 48LQFP | 92% | View |
| AMT49100KJPTR-B-5 | Allegro MicroSystems | IC GATE DRVR HALF-BRIDGE 48LQFP | 92% | View |
| AMT49100KJPTR-B-3 | Allegro MicroSystems | IC GATE DRVR HALF-BRIDGE 48LQFP | 92% | View |
| 6EDL7141XUMA1 | Infineon Technologies | 3-PHASE SMART GATE DRIVE CONTROL | 78% | View |
| IMD700AQ064X128AAXUMA1 | Infineon Technologies | CONTROLLER | 78% | View |
| IMD701AQ064X128AAXUMA1 | Infineon Technologies | CONTROLLER | 78% | View |
