3-PHASE SMART GATE DRIVE CONTROL

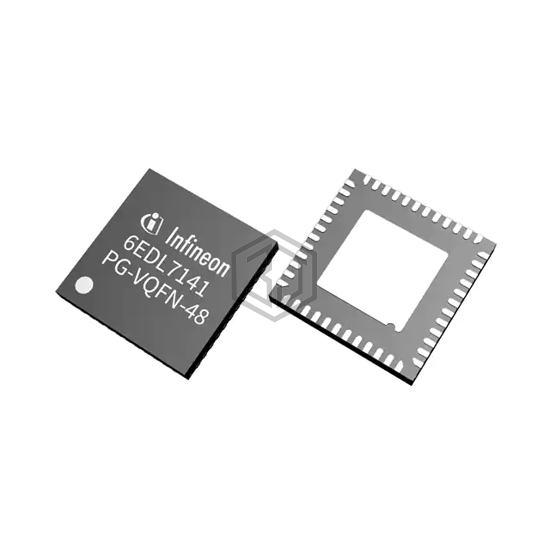

6EDL7141XUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. 3-PHASE SMART GATE DRIVE CONTROL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 5.5V ~ 60V, package / case 48-VFQFN Exposed Pad.
In Stock: 5,259
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 3 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 5.5V ~ 60V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | PG-VQFN-48-78 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TMC6200-TA | Analog Devices Inc./Maxim Integrated | IC GATE DRVR HALF-BRIDGE 48TQFP | 88% | View |
| MLX83203KLW-DBA-000-SP | Melexis Technologies NV | IC GATE DRVR HALF-BRIDGE 32QFN | 85% | View |
| MIC4607-1YML-TR | Microchip Technology | IC GATE DRVR HALF-BRIDGE 28QFN | 83% | View |
| MIC4607-1YTS-TR | Microchip Technology | IC GATE DRVR HALF-BRIDGE 28TSSOP | 83% | View |
| MIC4607-2YML-TR | Microchip Technology | IC GATE DRVR HALF-BRIDGE 28VQFN | 82% | View |
| TLE9180D21QKXUMA1 | Infineon Technologies | DRIVER_IC | 77% | View |
Submit your RFQ for 6EDL7141XUMA1 and get a quote within 24 hours.
