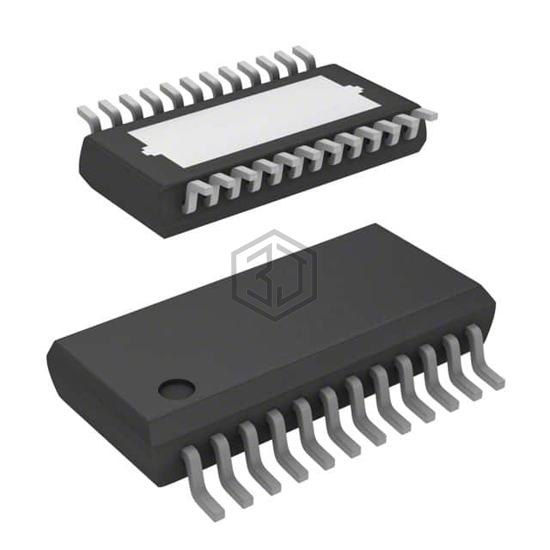

IC PWR DRIVER N-CHAN 1:8 24SSOP
TLE7235E is a PMIC - Power Distribution Switches, Load Drivers manufactured by Infineon Technologies. IC PWR DRIVER N-CHAN 1:8 24SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 24-LSSOP (0.154", 3.90mm Width) Exposed Pad.
In Stock: 2,261
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 8 |
| Ratio - Input:Output | 1:8 |
| Output Configuration | High Side or Low Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 9V ~ 16V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 175mA, 350mA |
| Rds On (Typ) | 900mOhm, 1.6Ohm |
| Input Type | - |
| Features | - |
| Fault Protection | Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-SSOP-24-4 |
| Package / Case | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad |
TLE7235E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TLE7234EXUMA1 | Infineon Technologies | IC PWR DRIVER N-CHAN 3:8 24SSOP | 100% | View |
| TLE7236E | Infineon Technologies | IC PWR DRIVER N-CHAN 1:8 24SSOP | 100% | View |
| TLE7235EMXUMA1 | Infineon Technologies | IC PWR DRIVER N-CHAN 1:8 24SSOP | 100% | View |
| TLE7234EMXUMA1 | Infineon Technologies | IC PWR DRIVER N-CHAN 3:8 24SSOP | 100% | View |
| TLE75242ESDXUMA1 | Infineon Technologies | IC PWR DRVR N-CHAN 1:8 TSDSO-24 | 56% | View |
| TLE75242ESHXUMA1 | Infineon Technologies | IC PWR DRVR N-CHAN 1:8 TSDSO-24 | 56% | View |
Submit your RFQ for TLE7235E and get a quote within 24 hours.
